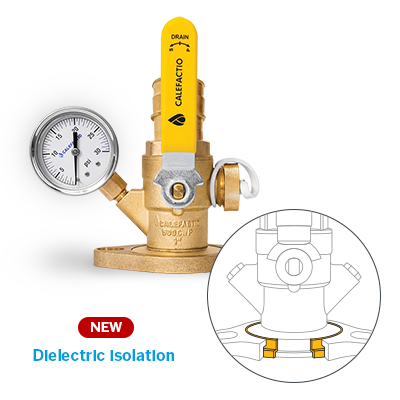

Dielectric Pump Flange Valve – PEX

In addition to being the only pump flange valve that includes a pressure gauge port that allows you to quickly monitoring your system, it now includes dielectric isolation sleeve in the rotating flange.

The pressure gauge allows you to check the system pressure at any time and react quickly in the event that the system is not within its normal pressure range. The gauge gives a precise reading between 0 and 100 PSI (0-690 kPa).

The dielectric isolation sleeve in the rotating flange prevents dissimilar metal corrosion (galvanic corrosion).

Available with drain or no drain in unit or kit NPT – SWEAT – PRESS – PEX F1960 formats, with  ¾”, 1”, 1 ¼”,  1 ½” or 2” connections

TECHNICAL SPECIFICATIONS

  • Full port brass ball valve
  • Connections: NPT, Sweat, Press or PEX, ¾” to 1 ½”
  • Dielectric rotating flange NEW
  • 1 valve with drain and gauge port
  • 1 valve with 2 gauge ports
  • Ball valve isolation for circulating pumps
  • Threaded end complies with ANSI B1.20.1
  • 500 CWP (Cold Working Pressure)

BENEFITS

  • A quick overview of the system
  • Simplify drainage and filling
  • Ensures a great seal

THE KIT INCLUDES

  • 1 flange valve with drain
  • 1 flange valve without drain
  • 2 gaskets
  • 4 nuts and 4 bolts

PRESSURE GAGE (option)

  • 0-30 PSI pressure gage 1⁄8” (#GAGE0-30BOTTOM)
  • 0-100 PSI pressure gage 1⁄8” (#GAGE0-100BOTTOM)
