GMP6

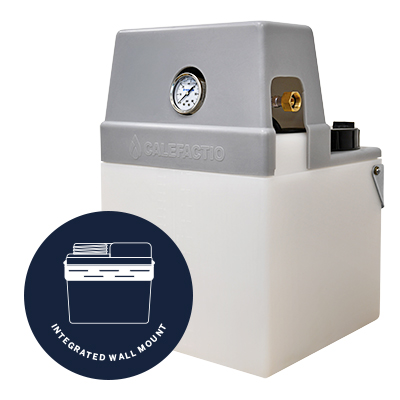

New integrated wall mount for simplified installation and secure mounting.
Calefactio’s glycol make-up pacjage are economical yet rugged, compact and easy to use fluid feeders for small closed-loop systems. Their function is to automatically supply pressurized water or a water/glycol mixture to a closed-loop space heating, chilled water, snowmelt, solar, radiant heating or process control system, to ensure that minimum system pressure levels are maintained. The optional low-level float alarm provides an audible and visual indication in the event of a leak or a drop in level.
Also available for solar sytems.
Included
▶ Integrated wall mount bracket
▶ 5 in (127 mm) access cover
▶ Embossed level graduations
▶ Glycerin-filled pressure gauge
▶ Flexible braided hose for system connection (½ in FNPT)
▶ ¾ in opening for pressure relief valve discharge return
▶ Fill pump with 3-way valve
▶ Fill hose with filter
▶ Adjustable pressure regulating valve
▶ Bypass valve
▶ Piggyback low-level float switch
▶ 1.8 m (6 ft) power cord with standard plug
Technical specifications
| Capacity | Power Supply | Flow Rate | Pressure | Connection to the system | |
|---|---|---|---|---|---|
| GMP6 | 22,7 L (6 gal.) | 120 VAC, 1 ph, 60 Hz, 0.6 A | 1,6 gpm/ (6 L/min) | 0-413 kPa (0-60 PSI) | 1/2" FNPT |
| GMP6S | 22,7 L (6 gal.) | 120 VAC, 1 ph, 60 Hz, 0.6 A | 1,6 gpm/ (6 L/min) | 0-690 kPa (0-100 PSI) | 1/2" FNPT |
