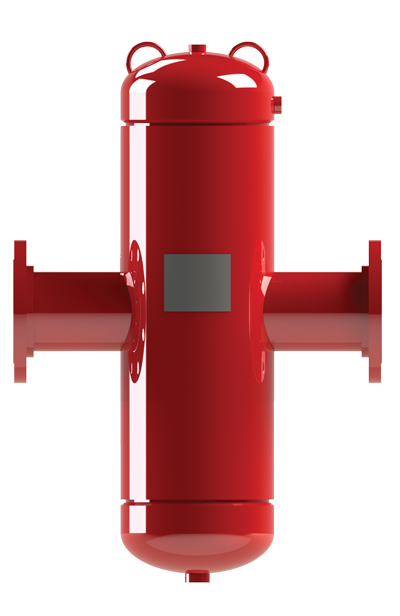

EWVAN Series

Coalescent Air & Dirt Separators

Non replaceable internal

Design conforms to ASME, section VIII

Non-replaceable media

Equipped with Calvent automatic vent (#CV050)

Supplied with a drain valve

Documents &
specification

Submittal Data

Technical Specifications

  • Coalescent media: stainless steel
  • Shell: carbonized steel
  • Automatic Air Vent : Brass
  • Exterior finish in painted primer
  • Maximum design temperature: 121°C (250°F)
  • Maximum design pressure: 125 PSI
  • Pressure of 150, 200 and 250 PSI also available



Models

Models Connection (in/mm) Max. Flow (GPM/LPM) Diameter (in/mm)
EWVAN-2 2/51 69/261 4.5/114
EWVAN-2NPT 2/51 61/261 4.5/114
EWVAN-2.5 2.5/64 108/409 5.5/140
EWVAN-2.5NPT 2.5/64 108/409 5.5/140
EWVAN3 3/76 144/545 6.5/165
EWVAN-3NPT 3/76 144/545 6.5/165
EWVAN-4 4/102 255/965 8.5/216
EWVAN-5 5/127 398/1507 10/254
EWVAN-6 6/152 570*2158 12/305
EWVAN-8 8/203 945/3577 16/406
EWVAM-10 10/254 1440/5451 20/508
EWVAN-12 12/305 2100/7949 24/610
