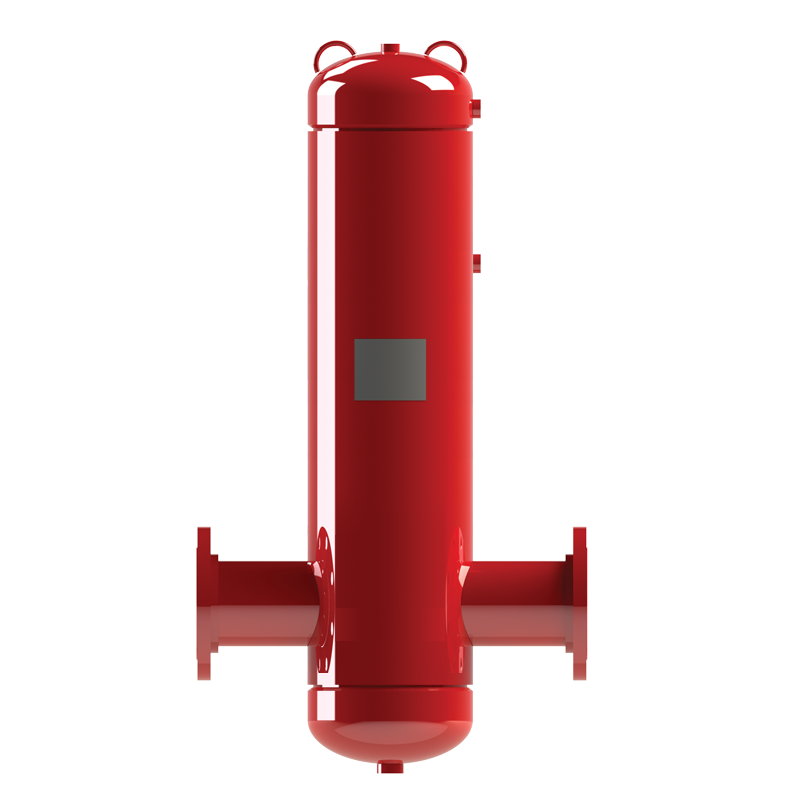

EWVAA-HV Series
High Velocity Coalescent Air Separator
Design conforms to ASME, section VIII
High velocity
Equipped with Calvent automatic vent (#CV050)
Supplied with a drain valve
Documents &
specification
Submittal Data
Technical Specifications
- Coalescent media: stainless steel
- Shell: carbonized steel
- Pressure purger valve: brass
- Maximum design temperature: 121°C (250°F)
- Maximum design pressure: 125 PSI
- Pressure of 150, 200 and 250 PSI also available
Models
| Model | Connection (in/mm) | Max. Flow (GPM/LPM) | Diameter (in/mm) |
|---|---|---|---|
| EWVAA-2HV | 2/51 | 105/397 | 4/102 |
| EWVAA-2HV-NPT | 2/51 | 105/97 | 4/102 |
| EWVAA-2.5HV | 2.5/64/ | 155/587 | 5/127 |
| EWVAA-2.5HV-NPT | 2.5/64 | 155/587 | 5/127 |
| EWVAA-3HV | 3/76 | 225/852 | 6/152 |
| EWVAA-3HV-NPT | 3/76 | 225/852 | 6/152 |
| EWVAA-4HV | 4/102 | 405/1533 | 8/203 |
| EWVAA-5HV | 5/127 | 630/2385 | 10/254 |
| EWVAA-6HV | 6/152 | 910/3445 | 12/305 |
| EWVAA-8HV | 8/203 | 1610/6094 | 16/406 |
| EWVAA-10HV | 10/254 | 2450/9274 | 20/508 |
| EWVAA-12HV | 12/305 | 3500/13249 | 24/610 |
